Renice X4 Compact Flash MLC 16GB

For general information and other test results, see the overview  UDMA CompactFlash Cards .

Renice X4 Compact Flash MLC 16GB, RCM016-PX4C

Specifications

Model: Renice CF
Firmware: 20101228
Type: CF Removable (848A) + ATA Fixed (044A)
CF-ATA Modes: PIO-6, MDMA-4, UDMA-6
Memory Mode: 120ns
Size: 16022200320 Bytes ~ 15279MB ~ 14.92GB
Sectors/CHS: 31293360 Sectors (LBA)

Test Results  Read  Write
 Express/34 PCIe x1 CF Reader   89.13MB/s 608x  27.80MB/s 189x

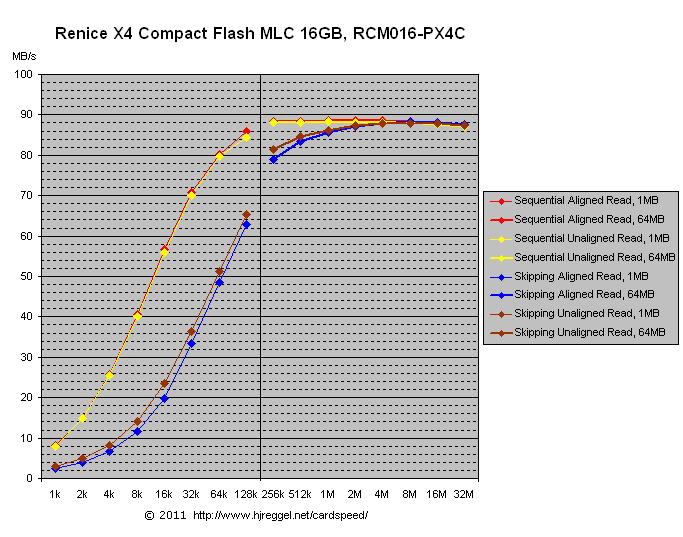

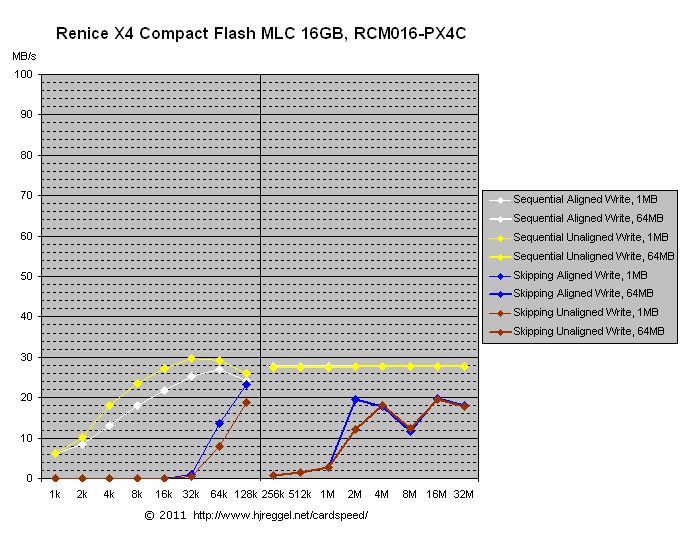

 Special Tests

CF PCIe x1 Reader

The test setup:
Renice X4 Compact Flash MLC 16GB, RCM016-PX4C
Express/34 CF Adapter DR25, JMicron JMB368CF Controller
Read/Write directly from/to the media, no filesystem involved
Read/Write rates taken with a sample size of 4MB, 3820 samples

The test showed an average trasfer rate of 89.13MB/s (608x) read and 27.80MB/s (189x) write.

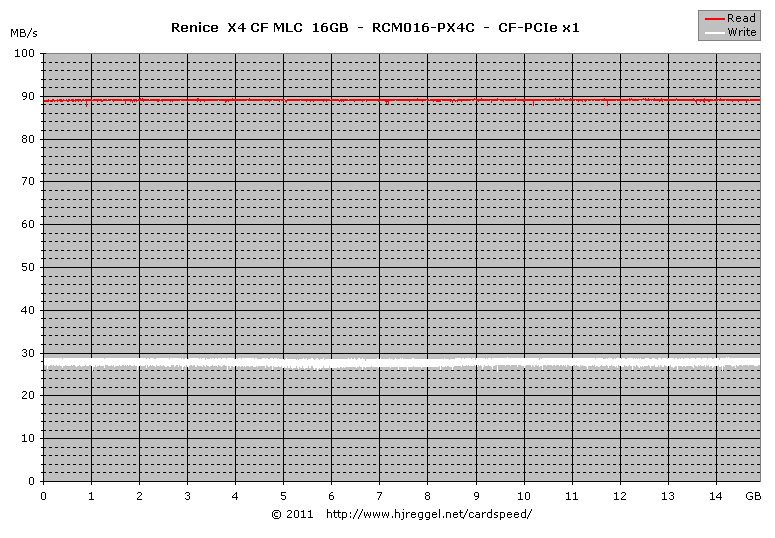

Renice MLC CF 16GB: PCIe x1 Read/Write

Special Tests

More information will follow, see the  Explanations for the Special Tests  for details regarding the test procedure.
